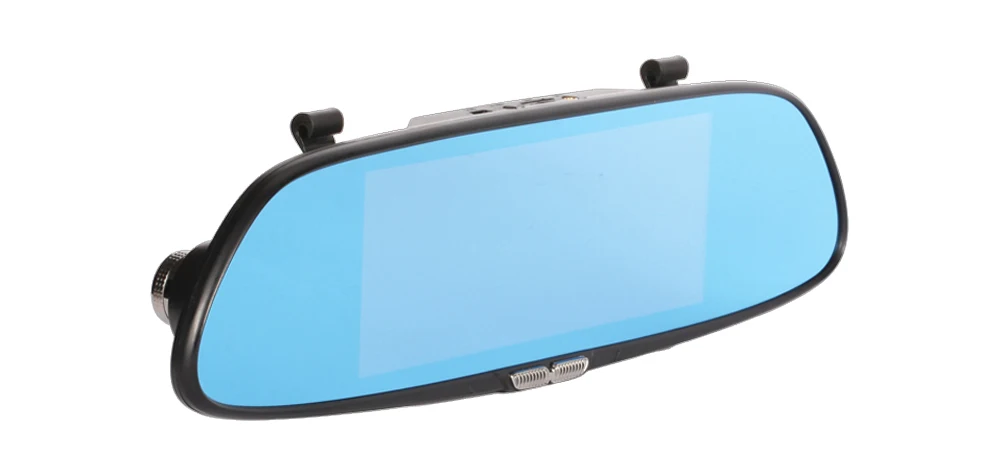

Smart Rear View Mirror
Improve your experience on the road by outfitting your ride with the Smart Rear View Mirror Dash Cam. It comes with a touchscreen surface for easy navigation and features two dual-mounted cameras that eliminate blind spots to help you avoid accidents.
| Features And Specifications | Installation Type | Rearview Mirror, suitable for all vehicles with mirror |
| Screen(Display) Size | 7.0 Inch IPS Touch Screen | |
| Chipset(Processor/CPU) | Generalplus | |
| Camera Sensor | Front 2MP + Rear 1MP | |
| Camera Lens | Front + Rear; 6 Glass + 4 Glass; 170 Degree Angle + 140 Degree Angle; F2.0 Aperture + F2.2 Aperture | |
| Video Resolution | Front: 1920*1080P@30FPS; Rear: 640*480P@25FPS | |
| Photo Resolution | 12M | |
| Video Code | MJPG | |
| Battery | Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working) | |
| OSD Languages | English, Russian, Chinses, Japanese, Korean,etc….. (If you want other languages,tell us,we will help you add it) | |
| Basic Features | G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically | |
| Memory Card | Micro SD Card, class 10 and 8GB to 32GB (Not included) | |
| Rear Camera Upgrade | Support max 12 meters cable Rear Camera | |
| Add Features | Night Vision, White Mirror, Blue Mirror | |
| More Features | Coming soon….. | |
| Packing List |
Basic:
1 x Packaging box
1 x DVR 1 x Power charger 1 x User manual |
1 x Rearview Camera With 6 Meters Cable(Optional) |
| 1 x Rearview Camera With 10 Meters Cable(Optional) | ||
| 1 x Rearview Camera With 12 Meters Cable(Optional) | ||
| 1 x Buck Line For 24H Parking Monitoring(Optional) | ||
| 1 x Real Class 10 High Speed TF Card(Optional) | ||
| Pay Attention | About 24h Monitoring | The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL). |
| About Video | Our Car DVR is FHD 1080P Video Recorder, must use high-quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally if you can’t make sure you have good TF Card, please buy our Original TF Card together. |

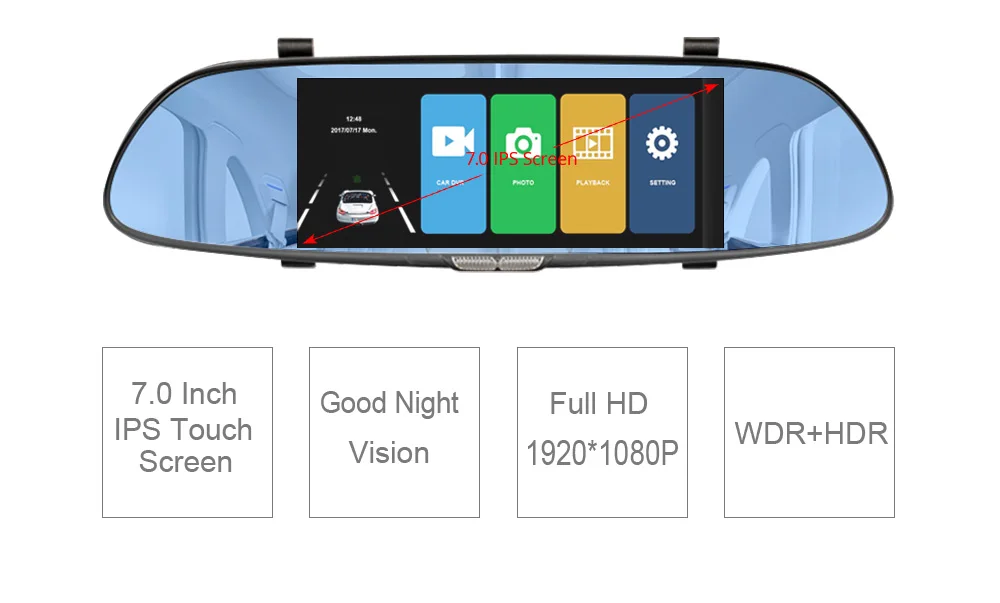

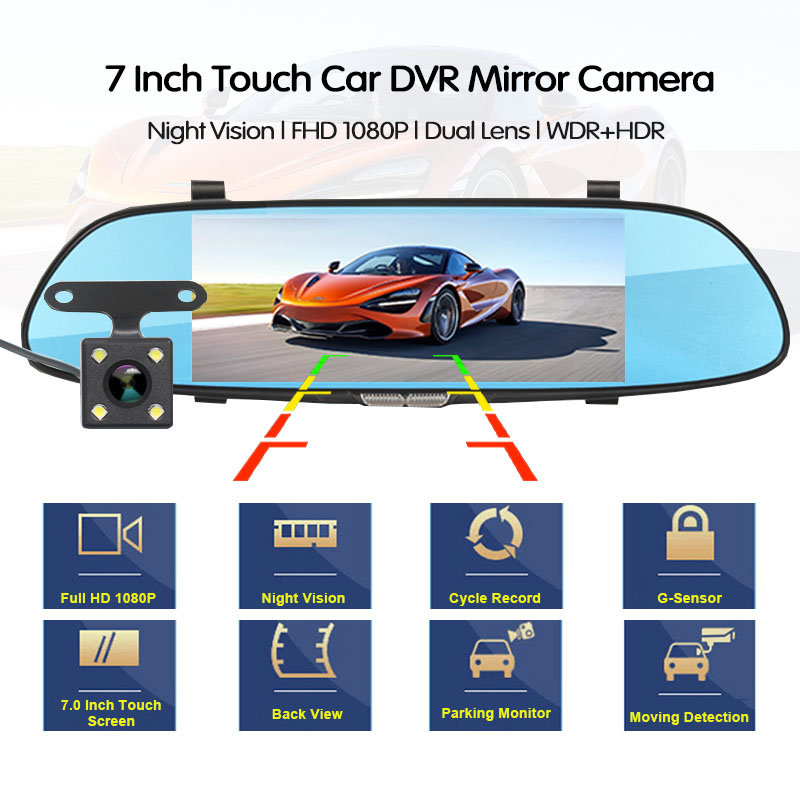

7.0 Inch Touch IPS Screen
We use the largest IPS Screen, with touch function, get more convenience for operation, get higher resolution for videos/images display.

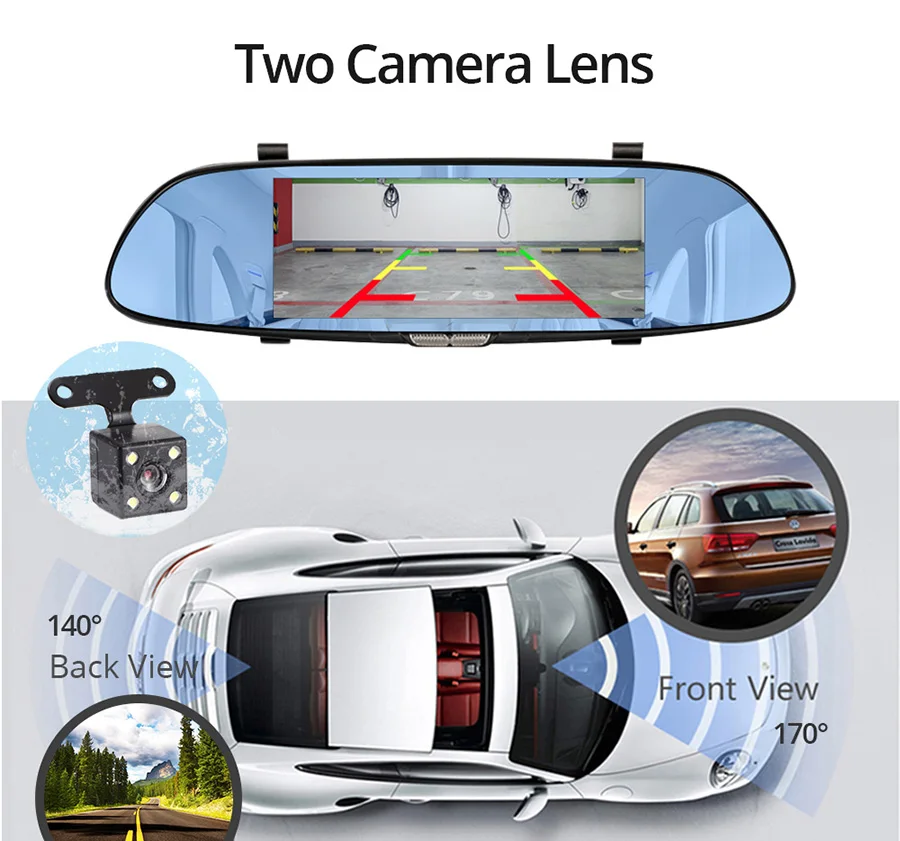

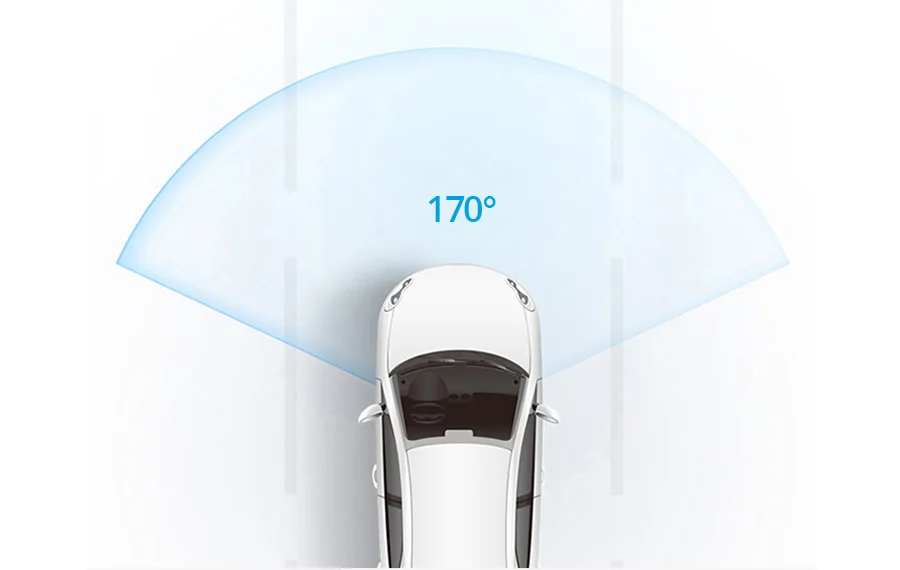

170 Degree Wide Camera Angle
Front Camera Lens is with 170 Degree large wide angle, and it has a 7.0 inch large screen, can have a super view. Rear Camera Lens is with 140 Degree angle, good view for reversing.

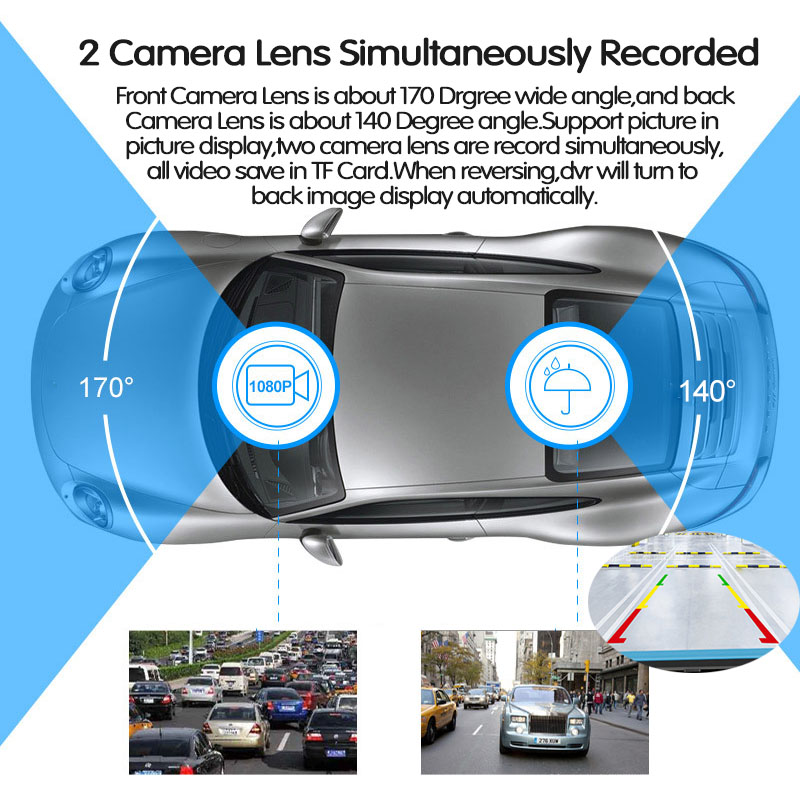

Dual Cam Simultaneously Recording
This Dvr support two Camera Lens, Front Camera Lens is about 170 Degree wide angle, and back Camera Lens is about 140 Degree angle. Support picture in picture display, two camera lens are recorded simultaneously,all video save in TF Card. When reversing,dvr will turn to back image display automatically.

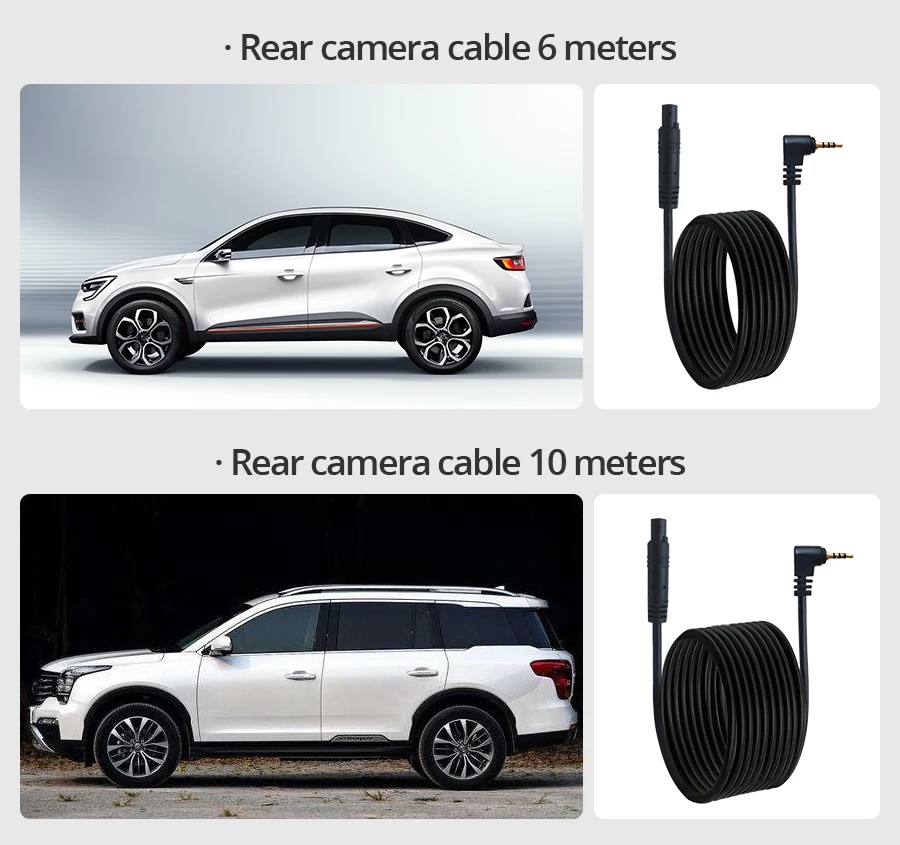

About Choosing The Length Of Rear Camera Cable
There are 2 lengths of the rear camera (up to about 10 meters) can be chosen, suitable for cars of different lengths. Please choose the rear camera according to the length of your car.

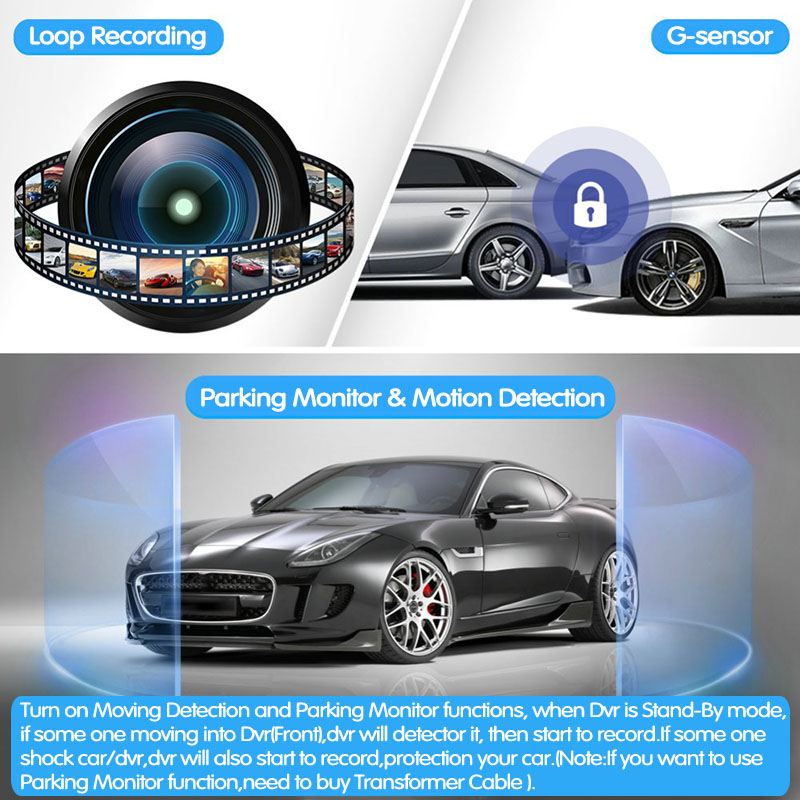

Loop Recording
When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring.
G-Sensor
When your car is subjected to an impact or other emergencies, the G sensor is triggered, so that the recorder immediately records and locks the video.
Motion Detection
With the motion detection function is enabled, when the Car DVR detects a moving object, it will automatically start recording video. When there is no moving object, it will stop recording and detect the moving object again.
Parking Monitor
If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.

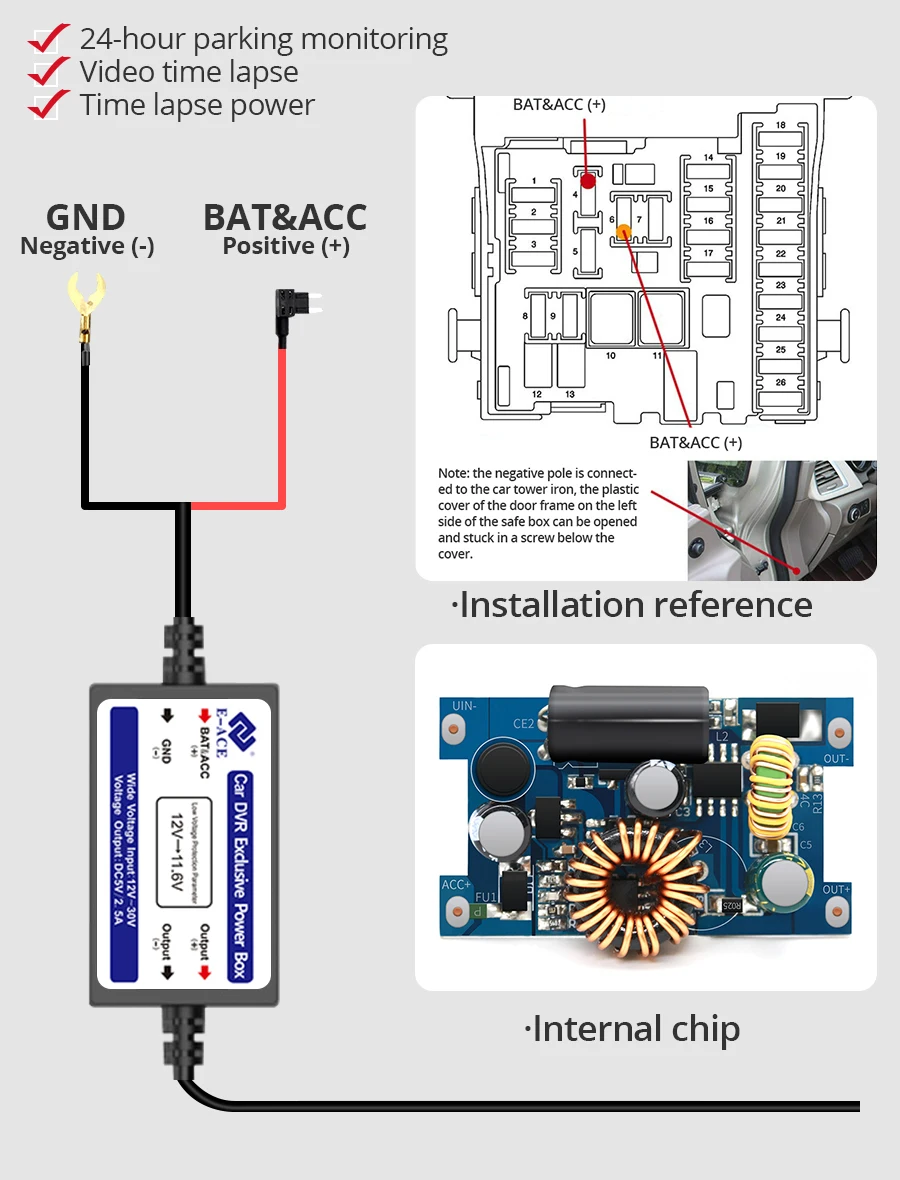

Buck Line
Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.
Wide Dynamic Range (WDR)
WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.

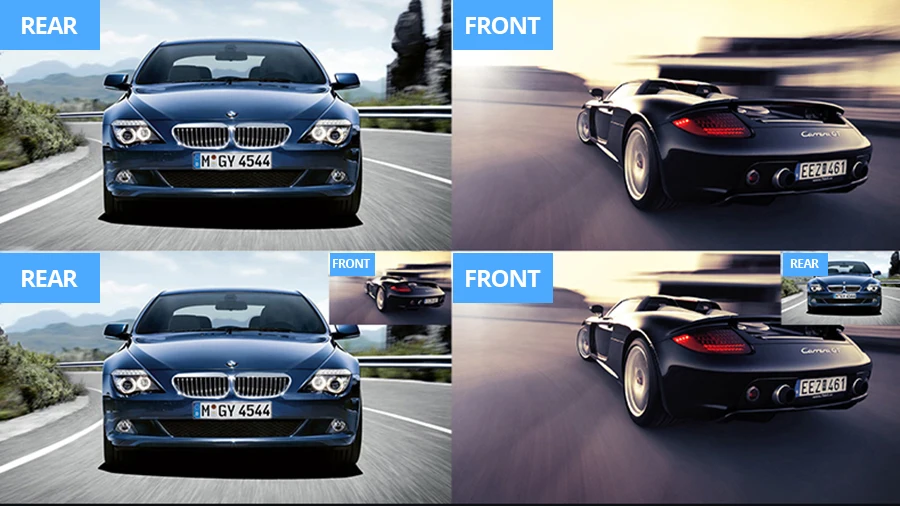

Picture-in-picture Display

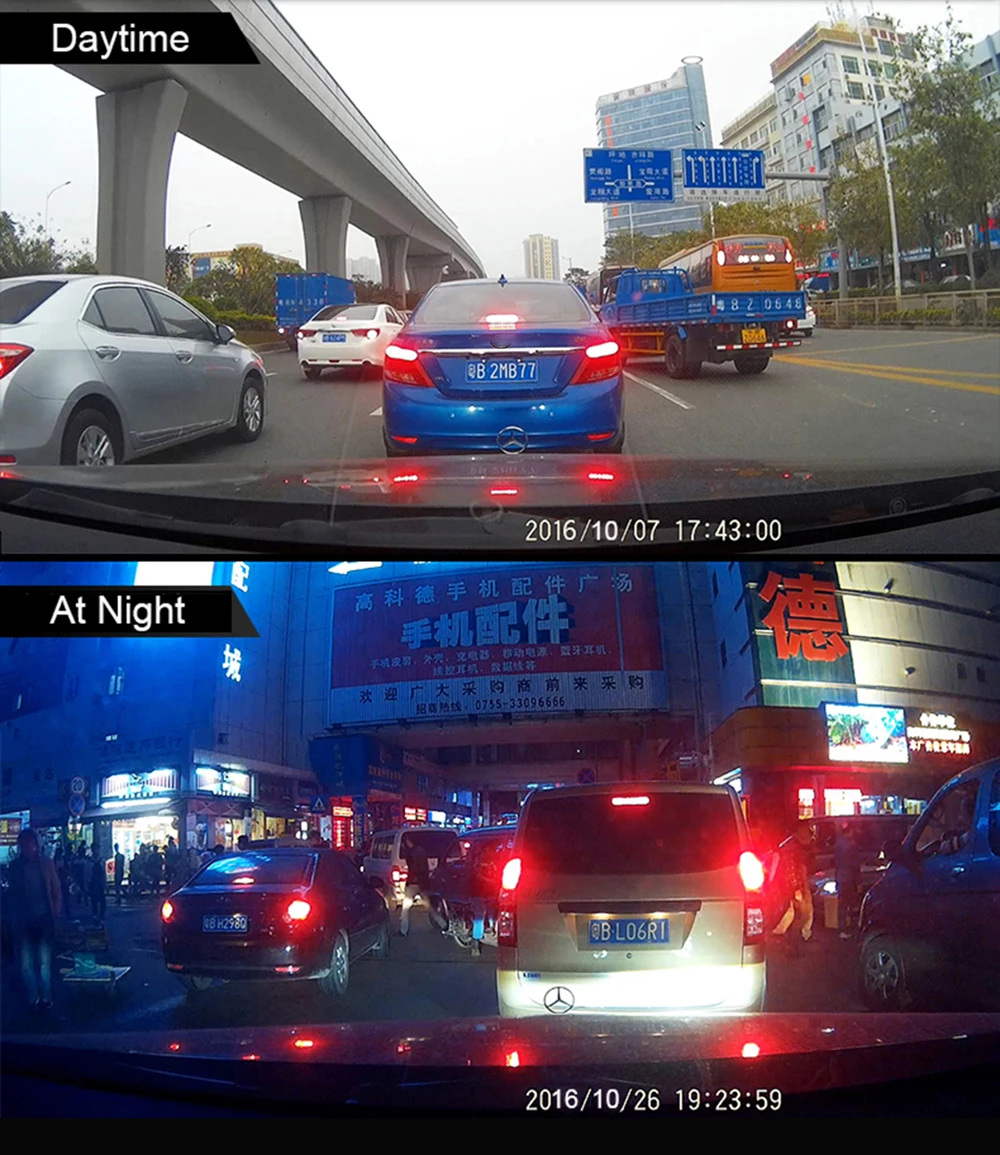

Video Display

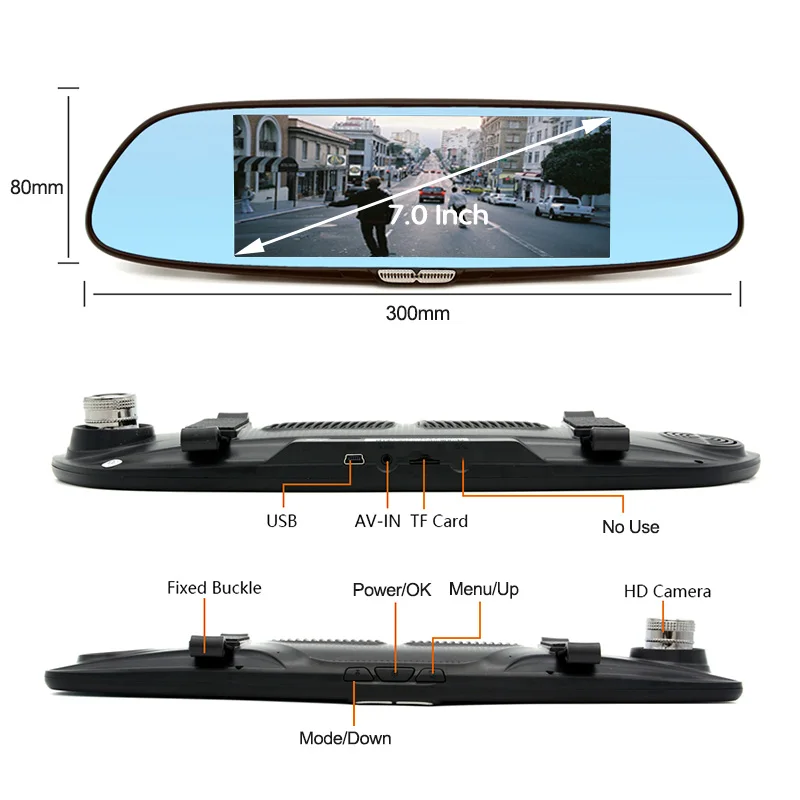

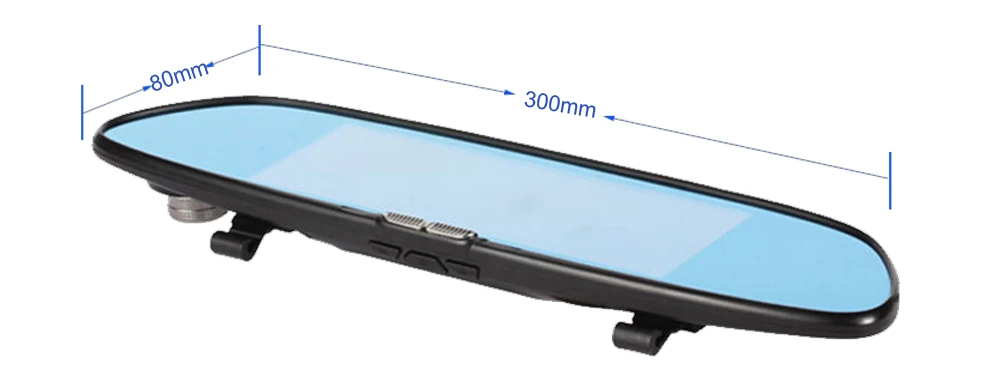

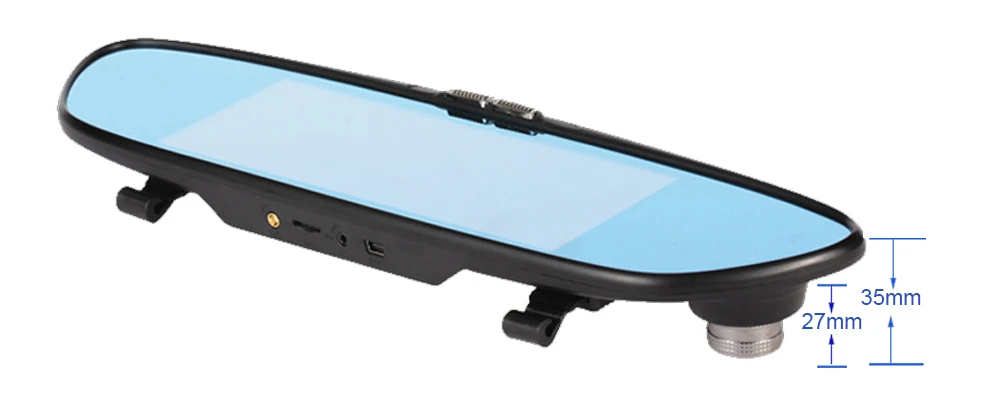

Details And Size Display

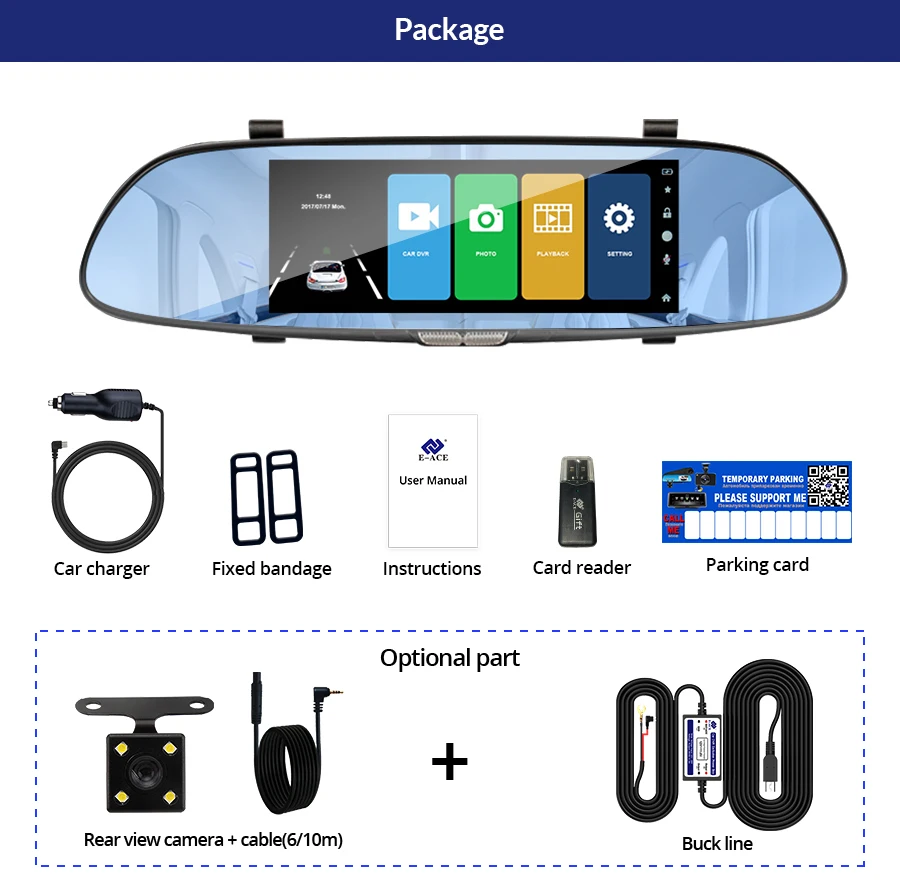

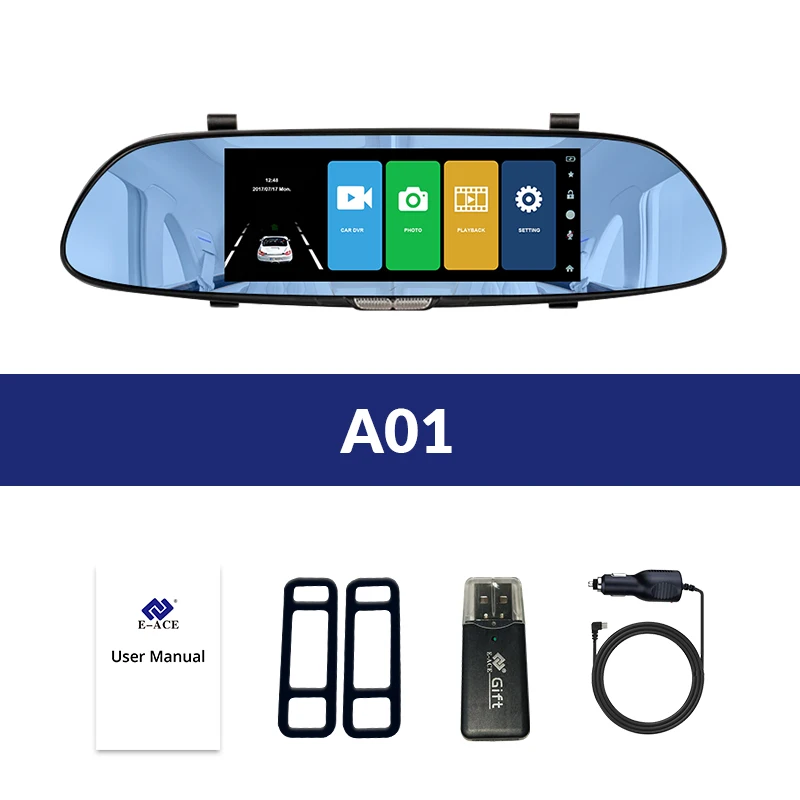

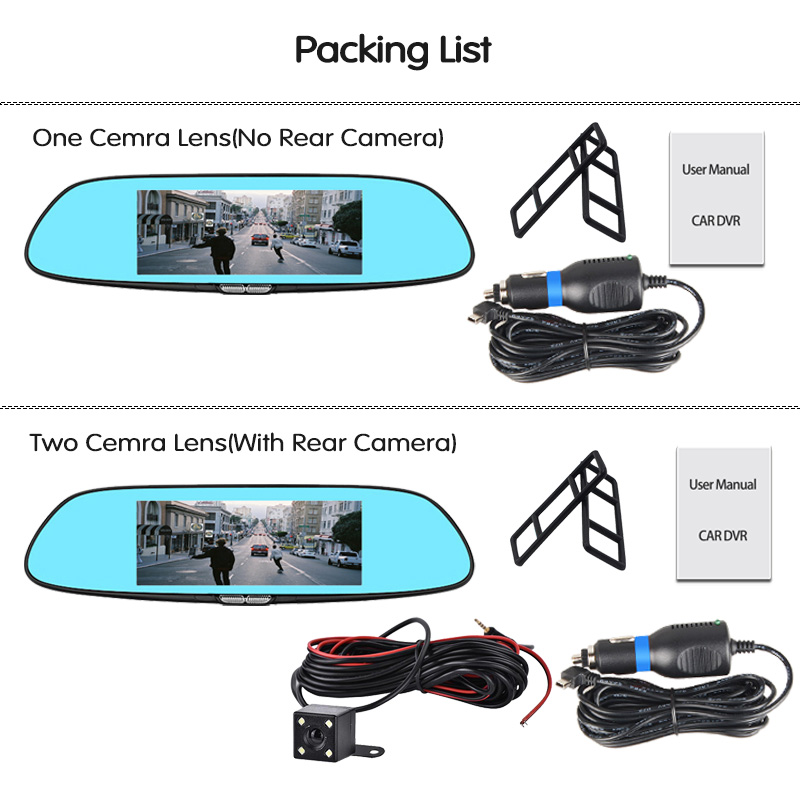

Packing List
A01
-1 x DVR(Without Rearview Camera)
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)

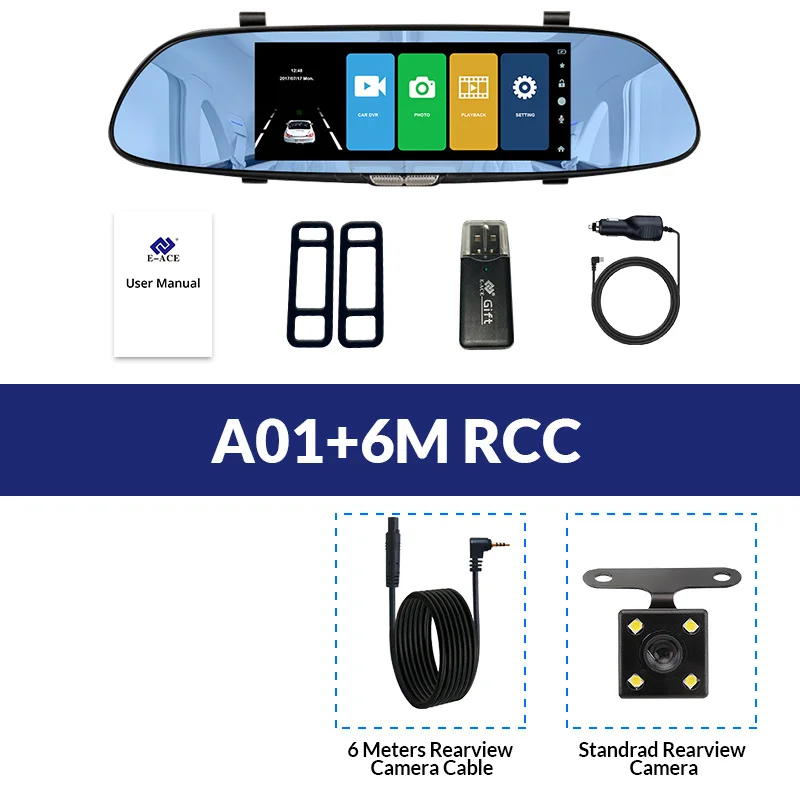

A01+6M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Rearview Camera With 6 Meters Cable

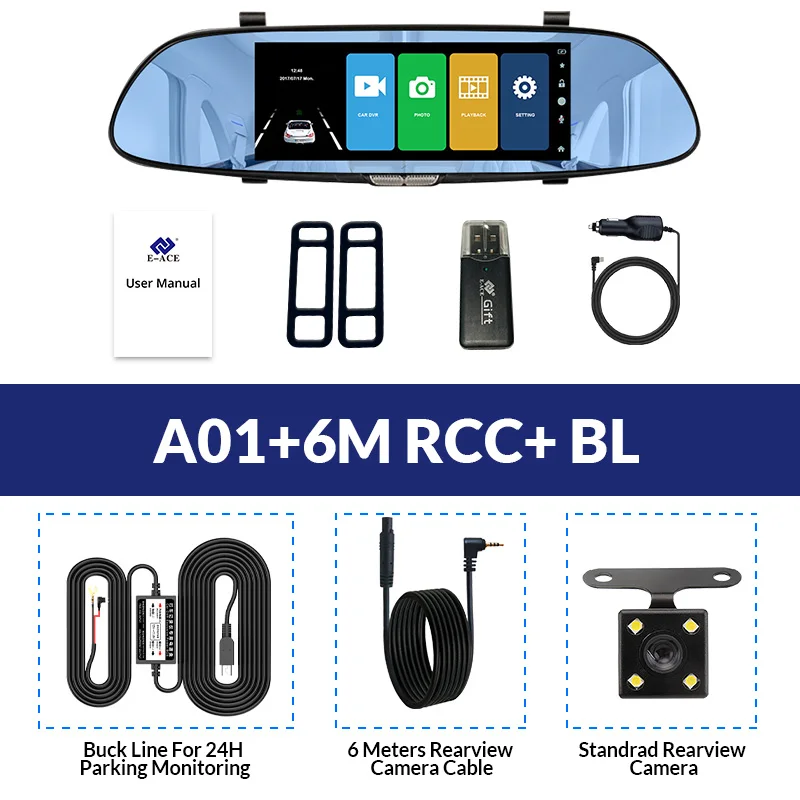

A01+6M RCC+BL
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Rearview Camera With 6 Meters Cable
-1 x Buck Line For 24H Parking Monitoring

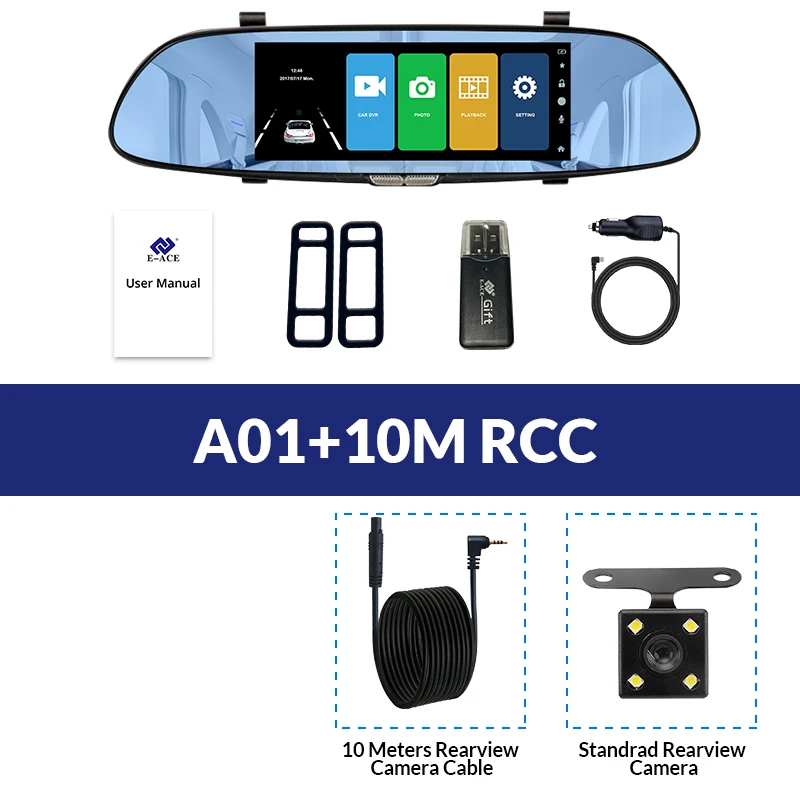

A01+10M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Rearview Camera With 10 Meters Cable

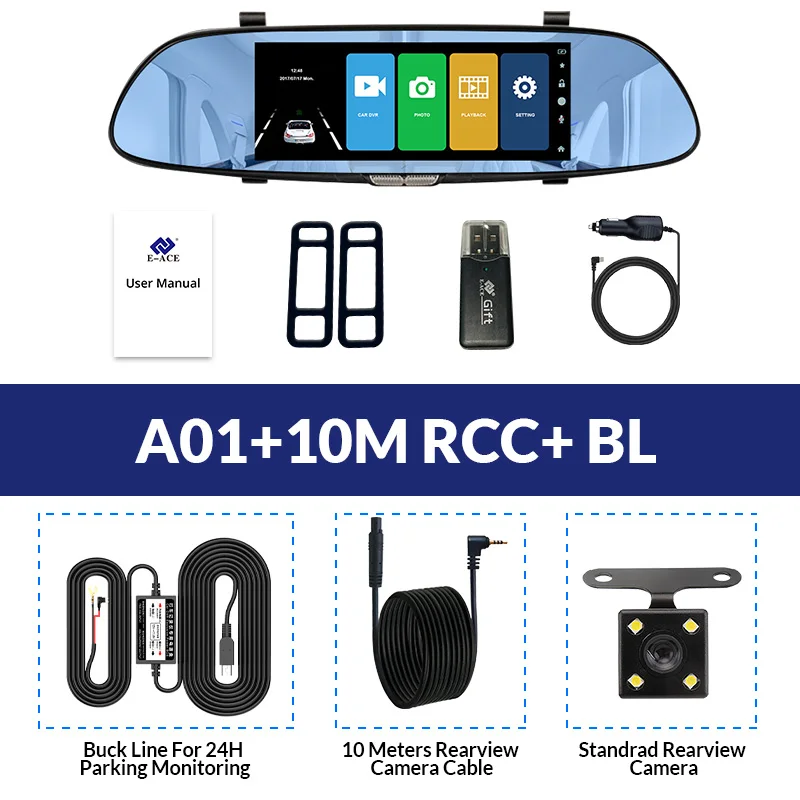

A01+10M RCC+BL
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x Rearview Camera With 10 Meters Cable
-1 x Buck Line For 24H Parking Monitoring

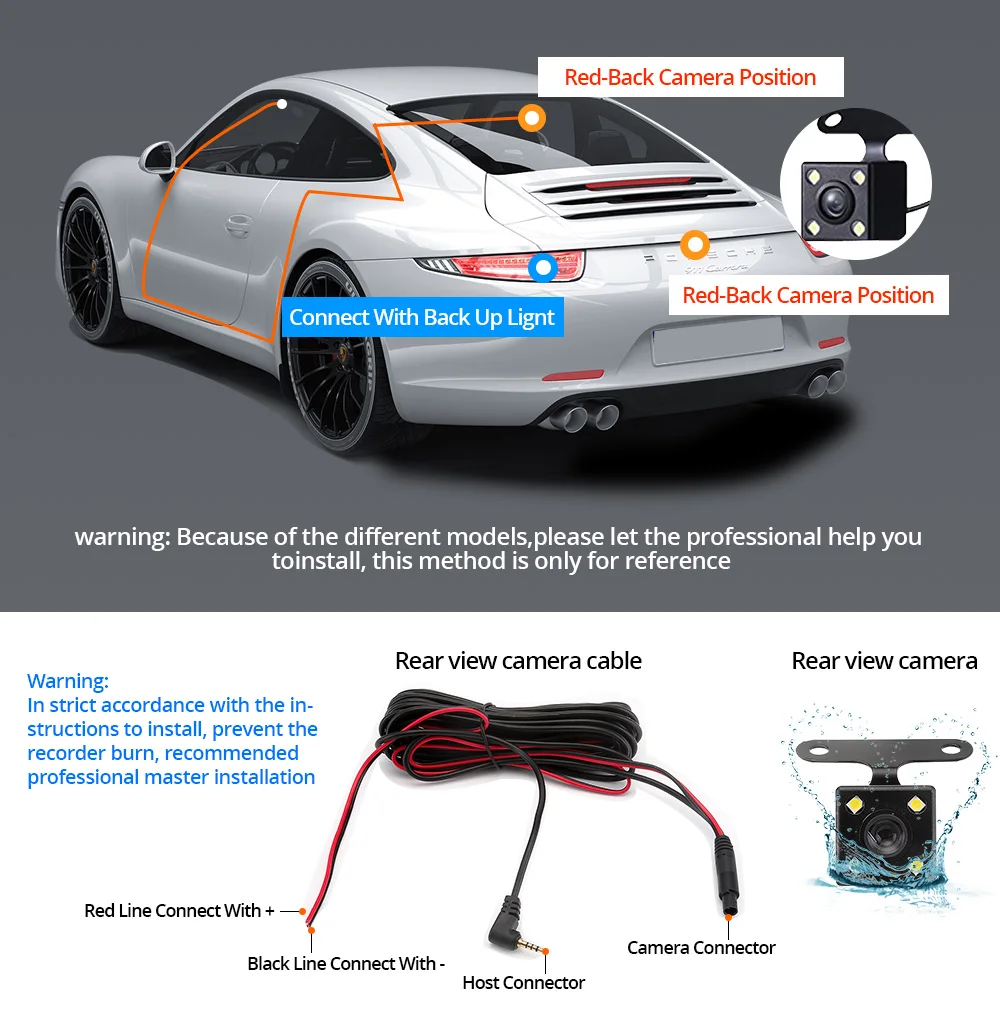

About Rear Camera Installation
Please connect the rear camera’s Red cable wire with your car reverse lamp power ‘s Positive pole(+).and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
